VerneMQ

VerneMQ#

What is VerneMQ?#

VerneMQ is a high-performance, distributed MQTT message broker designed for IoT and messaging applications. Built on Erlang/OTP, it offers excellent scalability, reliability, and fault tolerance. VerneMQ is designed to handle millions of concurrent connections and messages, making it ideal for IoT applications.

Quick Start#

To get started with VerneMQ, follow these steps:

After starting the MAPLE Platform with docker compose up -d, you can access the VerneMQ dashboard by navigating to http://localhost:8889 in your web browser. The dashboard provides an overview of the broker’s status, connections, and metrics.

MQTT Authentication#

The VerneMQ broker is configured with secure authentication through environment variables:

  • MQTT_USER: Username for MQTT authentication (configured in .env)

  • MQTT_PASSWORD: Password for MQTT authentication (configured in .env)

  • Anonymous access: Disabled for security

The broker automatically creates the specified user during initialization, ensuring secure access to the MQTT broker.

Network Configuration#

VerneMQ is configured to operate on both the backend and frontend networks:

  • Backend Network: Internal communication with other services

  • Frontend Network: External client access

  • Ports:

    • 1883: MQTT (standard)

    • 8883: MQTT over TLS/SSL

    • 8080: MQTT over WebSockets

    • 8889: HTTP status/metrics endpoint

Security Features#

The VerneMQ configuration includes several security features:

  • Anonymous access disabled: Only authenticated users can connect

  • Environment variable configuration: Credentials are securely managed through Docker secrets

  • Health checks: Automated monitoring of broker health

  • Resource limits: Memory and CPU constraints to prevent resource exhaustion

Connecting Clients#

To connect MQTT clients to the VerneMQ broker, use the following connection parameters:

# Basic MQTT connection
mosquitto_pub -h localhost -p 1883 -u "$MQTT_USER" -P "$MQTT_PASSWORD" -t "test/topic" -m "Hello World"

# MQTT over TLS
mosquitto_pub -h localhost -p 8883 -u "$MQTT_USER" -P "$MQTT_PASSWORD" -t "test/topic" -m "Hello World" --capath /etc/ssl/certs

# MQTT over WebSockets
# Use WebSocket client libraries with URL: ws://localhost:8080/mqtt

MQTTX Web - MQTT Testing Client#

MAPLE includes MQTTX Web, a browser-based MQTT client that makes it easy to test and debug your MQTT connections without installing additional software. There is currently one restriction: MQTTX Web only supports WebSocket connections.

Access MQTTX Web: http://localhost:8090

Features:

  • Connect to VerneMQ using WebSocket

  • Subscribe to topics and view messages in real-time

  • Publish test messages to topics

  • View message history and payloads

  • Test authentication with MQTT_USER and MQTT_PASSWORD

  • Debug topic structures and message formats

Quick Start with MQTTX Web:

  1. Open http://localhost:8090 in your browser

  2. Click “New Connection”

  3. Configure connection:

    • Name: VerneMQ Local

    • Host: ws://localhost

    • Port: Port 8080 for WebSocket

    • Username: Your MQTT_USER from .env

    • Password: Your MQTT_PASSWORD from .env

  4. Click “Connect”

  5. Use the interface to subscribe to topics and publish messages

This is especially useful for:

  • Testing LEAF adapter connections

  • Debugging message flows

  • Verifying topic structures

  • Monitoring real-time data streams

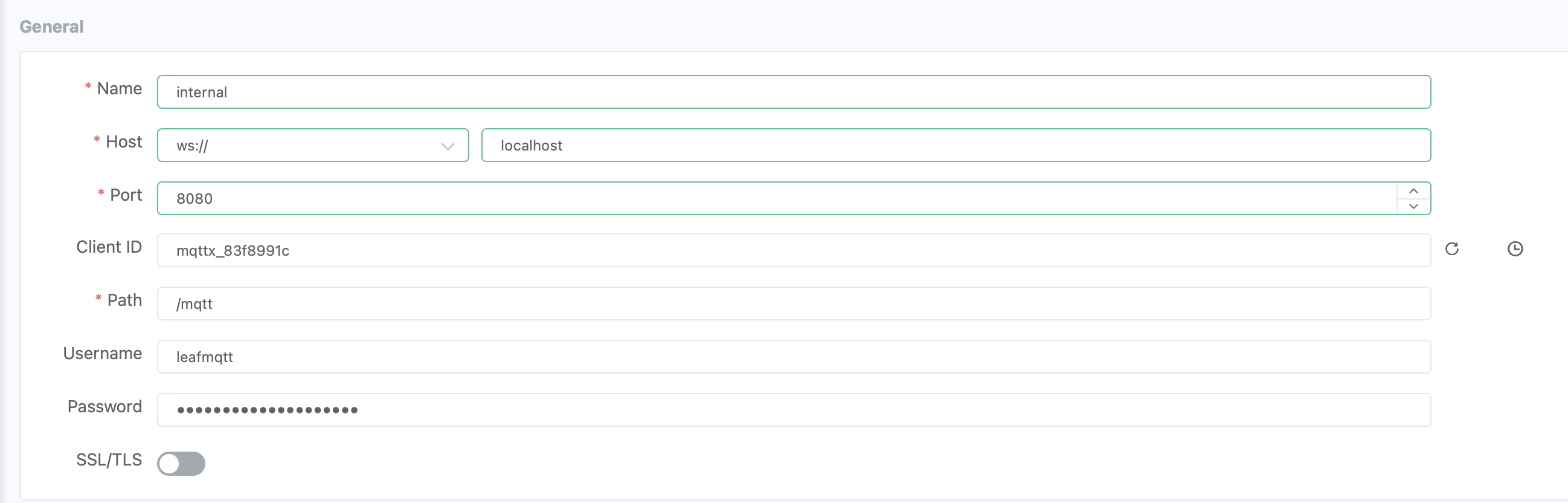

MQTTX Web Connection

Topic Structure#

LEAF adapters use a structured topic hierarchy for organizing data:

<institute>/<adapter_id>/<instance_id>/experiment/<experiment_id>/measurement/<measurement>

# Where <xxx> is a placeholder for the actual value.

This structure is coordinated through the YAML configuration file in combination with the adapter used.

Monitoring and Metrics#

The VerneMQ dashboard at http://localhost:8889 provides:

  • Connection statistics

  • Message throughput metrics

  • Client connection details

  • System resource usage

  • Real-time monitoring of MQTT activity

Troubleshooting#

Common issues and solutions:

  1. Connection Refused: Check if VerneMQ is running with docker compose ps vernemq

  2. Authentication Failed: Verify MQTT_USER and MQTT_PASSWORD in .env file

  3. No Messages: Check topic structure and client subscriptions

  4. High Memory Usage: Monitor connection count and message rates

For detailed logs, use:

docker compose logs -f vernemq
